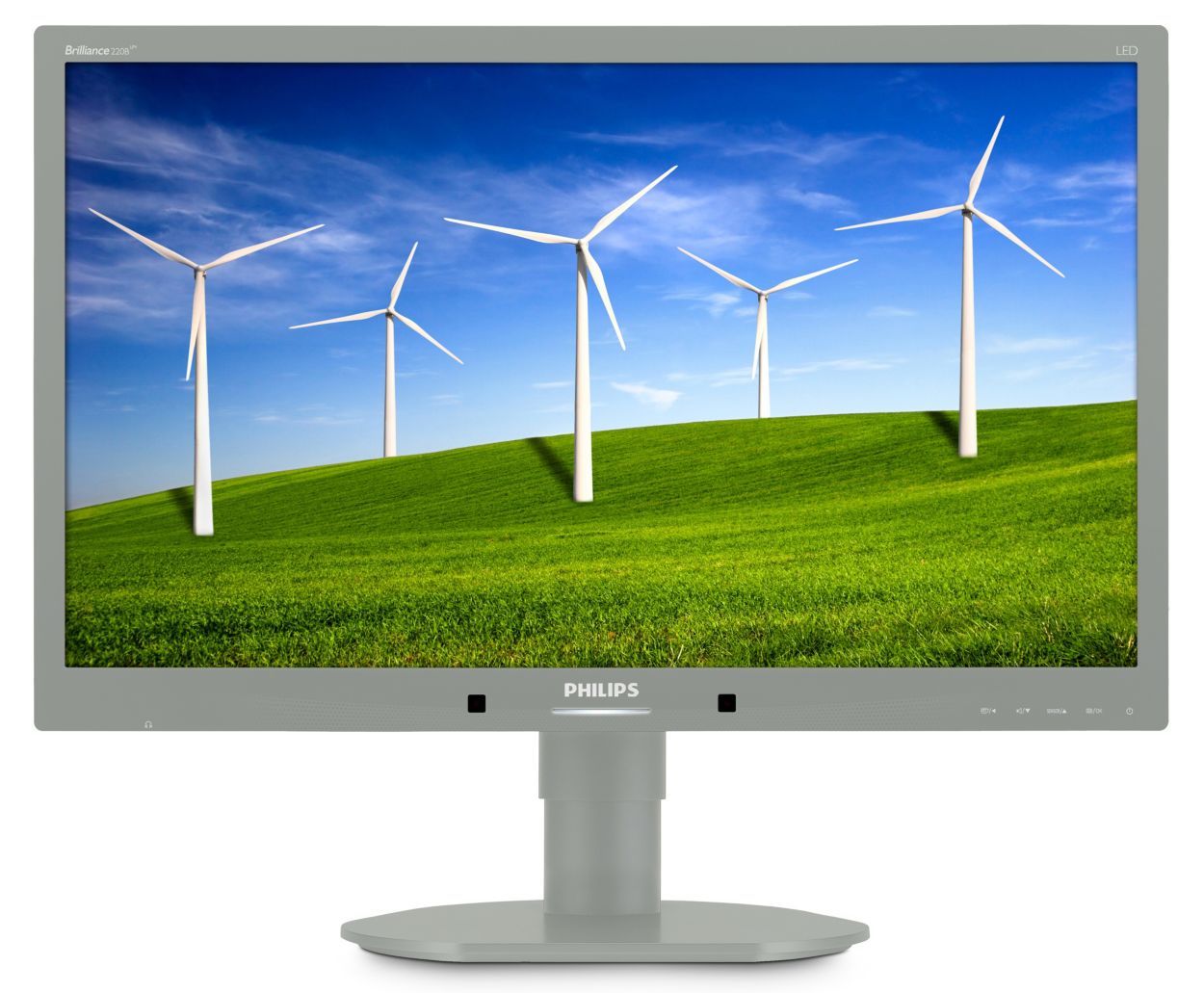

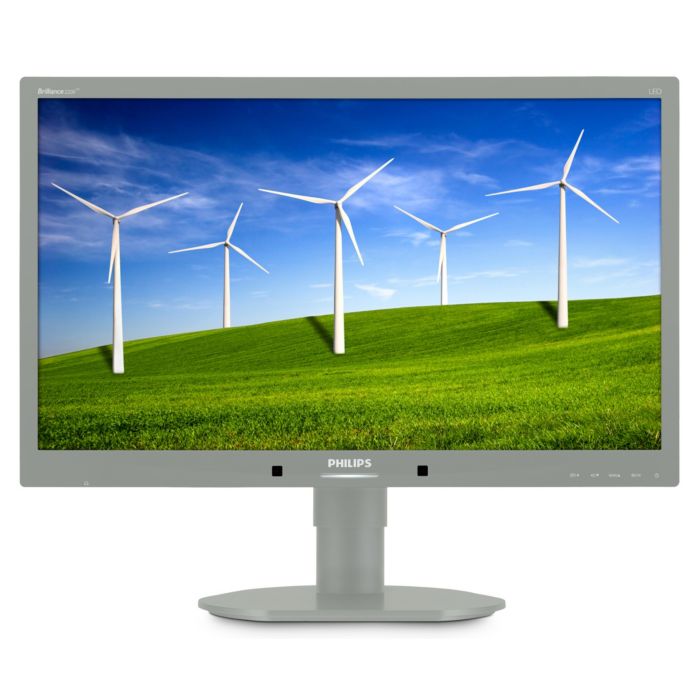

Brilliance LCD monitor, LED backlight

Name: LCD monitor, LED backlight
Brand: Philips
SKU: 220B4LPYCG/00

220B4LPYCG/00

Sustainable eco design display

The Philips PowerSensor LED display using 65% post-consumer recycled plastics and PVC, BFR free housing is ideal for eco-friendly productivity

See all benefits

Unfortunately this product is no longer available

This product qualifies for VAT relief

If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.

Make it a bundle and save Make it a bundle and get 1 item for free

All your needs covered in one purchase

Bundle price

Skip this

Choose one of the following: Choose one of the following products:

Add accessories

This product

- {discount-value}

Brilliance

LCD monitor, LED backlight

total

recurring payment

PowerSensor saves up to 80% energy costs

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if the user is present and then automatically reduces monitor brightness when then user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life

SmartErgoBase enables user-friendly ergonomic adjustments

The SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The base can swivel, tilt and rotate to various angles to ensure maximum comfort. The height-adjustable stand guarantees the optimal viewing level, reducing the physical strains of a long workday, while cable management reduces cable clutter and keeps the workspace neat and professional.

Low bezel-to-table height for maximum reading comfort

Thanks to its advanced SmartErgoBase, the Philips monitor can be lowered down almost to desk level for a comfortable viewing angle. Low bezel-to-table height is the perfect solution if you use bifocals, trifocals or progressive lens glasses for your computing work. Additionally, it allows users of different heights to use the monitor at their preferred angle and height settings, helping them to reduce fatigue and strain.

Built-in stereo speakers for multimedia

A pair of high-quality stereo speakers built into a display device. They may be visible front firing, or invisible down firing, top firing, rear firing etc. depending on model and design.

SmartImage pre-sets for easy optimised image settings

SmartImage is an exclusive leading edge Philips technology that analyses the content displayed on your screen and optimises your display performance. This user-friendly interface allows you to select various modes, like Office, Photo, Movie, Game, Economy etc., to fit the application in use. Based on the selection, SmartImage dynamically optimises the contrast, colour saturation and sharpness of images and videos for ultimate display performance. The Economy mode option offers you major power savings. All in real time at the touch of a single button!

LED technology ensures natural colours

White LED's are solid state devices which light up to full, consistent brightness faster saving startup time. LED's are free from mercury content, which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of the LCD backlight, resulting in a super high contrast ratio. It also gives superior colour reproduction thanks to consistent brightness across the screen.

DisplayPort offers audio and video over a single, long cable

DisplayPort is a digital link from PC to monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15 metre cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates — making DisplayPort the best choice for not only general office or home use, but also for the more demanding gaming and films, video editing and more. It also keeps interoperability in mind via the use of various adapters.

USB Hub with 2 ports for easy connections

USB Hub allows user to conveniently connect their plug and play multimedia devices such as USB memory devices, camera, portable HDD, Web camera, PDA, Printer and many other devices which have USB connection available. The conveniently located USB 2.0 Hub on the monitor allows USB 2.0 signals to pass through to the computer. Note that many devices like cameras and HDD may need to be powered On independently, as they have higher power requirements than the monitor USB Hub can provide.

PVC-BFR free housing

This Philips monitor housing is free from brominated flame retardant and polyvinyl chloride (PVC-BFR free)

Zero power consumption with 0 watt hard switch

At the flick of the 0 watt hard switch, which is conveniently located at the back of the monitor, you can completely cut off your monitor from AC power. This results in zero power consumption, reducing your carbon footprint even further

Technical Specifications

Picture/Display
Panel Size

22 inch/55.9 cm

Aspect ratio

16:10

LCD panel type

TFT-LCD

Backlight type

W-LED system

Pixel pitch

0.282 x 0.282 mm

Optimum resolution

1680 x 1050 @ 60 Hz

Brightness

250 cd/m²

Display colours

16.7 M

Contrast ratio (typical)

1000:1

SmartContrast

20,000,000:1

Response time (typical)

5 ms

Viewing angle
- 170º (H)/160º (V)
- @ C/R > 10
Picture enhancement

SmartImage

Effective viewing area

473.76 (H) x 296.1 (V)

Scanning Frequency

30–83 kHz (H)/56–75 Hz (V)

sRGB

Yes
Connectivity
Signal Input
- DisplayPort x 1
- DVI-D (digital, HDCP)
- VGA (Analogue)
USB

USB 2.0 x 2

Sync Input
- Separate Sync
- Sync on Green
Audio (In/Out)
- PC audio-in
- Headphone out
Convenience
Built-in Speakers

1.5 W x 2

Plug and Play Compatibility
- DDC/CI
- Mac OS X
- sRGB
- Windows 8.1 / 8 / 7
User convenience
- SmartImage
- Volume
- PowerSensor
- Menu
- Power On/Off
OSD Languages
- Brazil Portuguese
- Czech
- Dutch
- English
- French
- Finnish
- German
- Greek
- Hungarian
- Italian
- Japanese
- Korean
- Portuguese
- Polish
- Russian
- Simplified Chinese
- Spanish
- Swedish
- Traditional Chinese
- Turkish
- Ukrainian
Other convenience
- Kensington lock
- VESA mount (100 x 100 mm)
Stand

Height adjustment

110 mm

Pivot

90 degree

Swivel

-65/65 degree

Tilt

-5/20 degree
Power
ECO mode

11.4 W (typ.)

Power supply
- Built-in
- 100–240 VAC, 50–60 Hz
Off mode

Zero watts with Zero switch

On mode

14.61 W (typ.) (EnergyStar 7.0 test method)

Standby mode

0.3 W (typ.)

Power LED indicator
- Operation - White
- Standby mode - White (flashing)
Dimensions

Product with stand (mm)

504 x 509 x 227 mm

Packaging in mm (W x H x D)

565 x 391 x 186 mm

Product without stand (mm)

504 x 349 x 59 mm
Weight

Product with packaging (kg)

7.05 kg

Product with stand (kg)

5.20 kg

Product without stand (kg)

3.38 kg
Operating conditions

Altitude

Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)

Temperature range (operation)

0°C to 40°C °C

MTBF

30,000 hour(s)

Relative humidity

20% to 80% %

Temperature range (storage)

-20°C to 60°C °C
Sustainability
Environmental and energy
- PowerSensor
- EnergyStar 7.0
- RoHS
Post-consumer recycled plastic

65%

Recyclable packaging material

100 %

Specific Substances
- PVC/BFR free housing
- Mercury free
Compliance and standards
Regulatory Approvals
- CE Mark
- FCC Class B
- SEMKO
- cETLus
- BSMI
- CU-EAC
- EPA
- TUV/GS
- TUV Ergo
- UKRAINIAN
- WEEE
Cabinet

Finish

Texture

Foot

Grey

Front bezel

Grey

Rear cover

Grey
What's in the box?

Cables

VGA, DVI, Audio, Power

Monitor with stand

Yes

User Documentation

Yes
